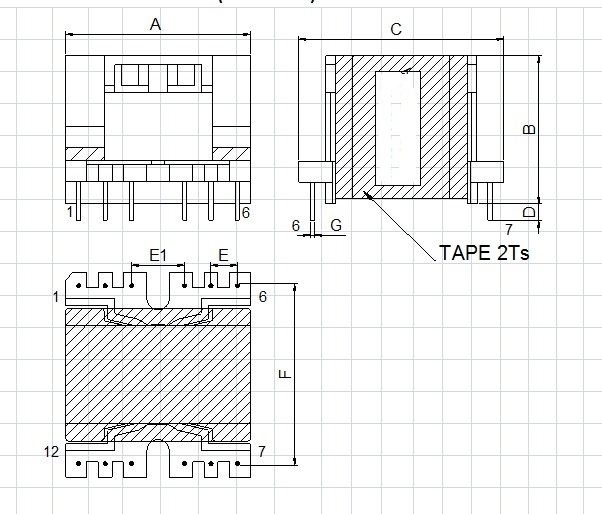

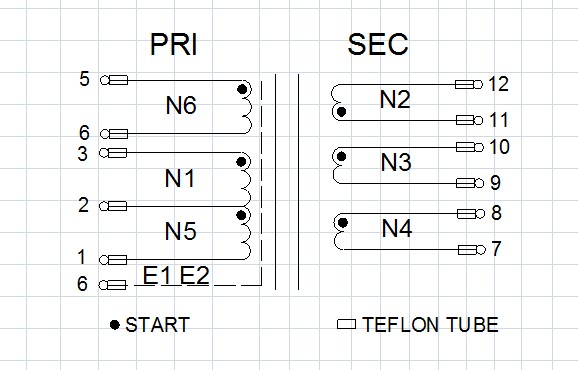

1489-PQ
ELECTRICAL CHARACTERISTICS:
1、INDUCTANCE： 10.0KHz at 1.0V (AMBIENT TEMPERATURE 25℃)
L1-3：600uH±10%
2、LEAKAGE INDUCTANCE：1.0KHz at 1.0V Short Other Pin
LK 1-3：50uH Max 1750 LCR
3、HI-POT TEST：
PRI TO SEC AC2.0KV/50Hz/5mA/60S
COIL TO CORE AC1.0KV/50Hz/5mA/60S
4、INSULATION RESISTANCE TEST：
COIL TO COIL AND COIL TO CORE DC500V 100 MΩ Min
